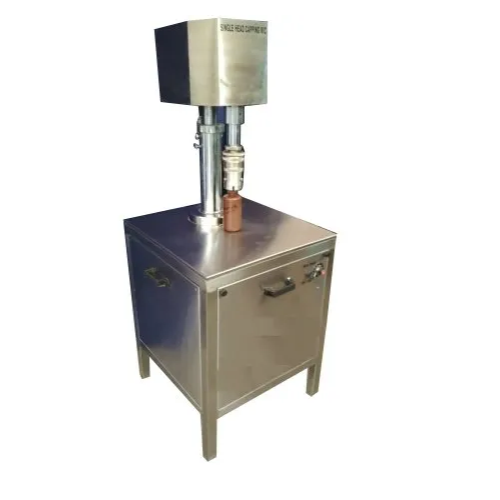

The Semi-Automatic Single Head Capping Machine by Peehu Pharma Machine is a cutting-edge solution designed to streamline your container capping needs. Engineered with precision and user-friendly features, this machine is the ideal choice for industries looking to achieve accurate, efficient, and consistent sealing. Whether you operate in the pharmaceutical, cosmetic, food, or chemical industry, this machine meets the demands of medium-scale production while ensuring top-notch quality and reliability.
- Compact & multipurpose unit.
- Heavy duty body is built using Stainless Steel Material.
- Doors are provided to facilitate the servicing of machine
- Bottle & Screw Cap loading is manual.
- Screw Capping head with mechanically torque adjustment facility.
- Motorized Screw capping head with clutch system
- Adjustable bottle height gauge provided for easy & quick setting.
- Speed Variation through Variable Frequency drive.
- Easy operating interface as operating panel mounted at front side of machine.
- No or Minimum change parts require for different container diameter.
- Low Power consumption
- Maintenance free Machine
| Type of Capping | Screw Type Capping on Bottle |
| Output/ Minute | 20 to 25 bottle per minute depending upon Operator efficiency |
| Number of Screw Capping head | 1 Nos. |
| Power Consumption (KW) | 0.75 KW |
| Electrical Connection | 230 V, Single phase, 50 HZ |
| Screw Cap Diameter (mm) | 18 mm to 52 mm (With Change part) |
| Container Diameter (mm) | 22 mm to 100 mm |
| Container Height (mm) | 58 mm to 240 mm |
Applications
Advantages
The semi-automatic design reduces labor costs while maintaining the accuracy and efficiency of automated systems. It is an economical choice for small to medium-scale operations.
With an output of up to 40 containers per minute, the machine allows you to scale your production without overhauling your entire process line.
Built with high-quality components, the machine requires minimal maintenance, reducing downtime and operating costs.
The machine is designed with safety in mind, featuring shields and controls that protect the operator during use.
From pharmaceuticals to cosmetics and food production, the machine’s adaptability makes it a valuable addition to any production line.
